Our Vento X Series is designed for those who want to use clean wind energy effectively and professionally. Suitable for both domestic and industrial use, for storage (Stand Alone System) and electric bill reduction (Grid Connected System). Can be easily installed, and the power can be customized to suit your needs: 1KW, 2KW or 3KW.

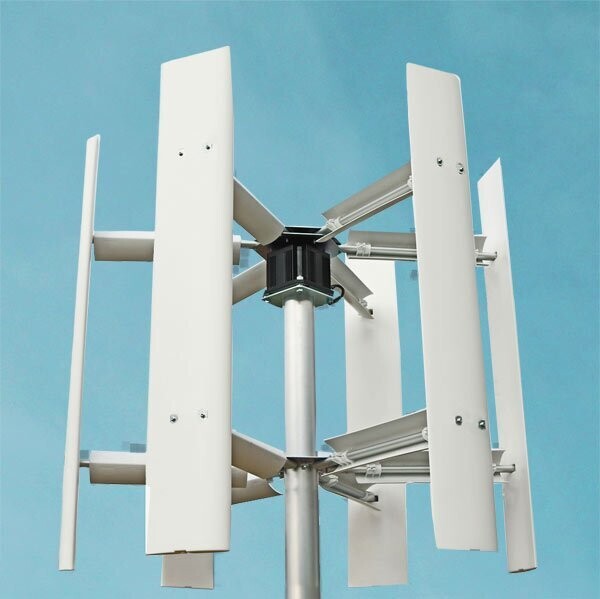

Our vertical axis wind rotor with double DARRIEUS/SAVONIUS combined profile allows you to maximize efficiency: the Darrieus profile captures a large volume of air and work at high speeds; the Savonius profile lowers the start-up and increase the torque.

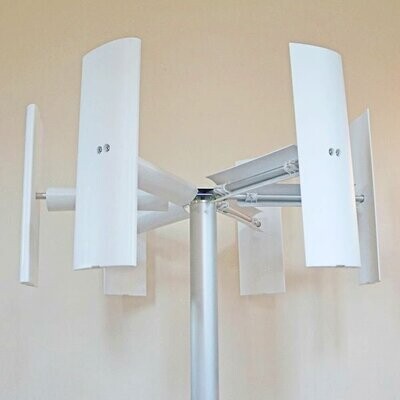

Also available in 6-blade version (6 vertical Darrieus blades / 12 Savonius horizontal blades) that allows you to capture twice the wind in the same volume unit, doubling the power.
Self-braking:
due to its intrinsic aerodynamic nature, the Savonius profile is self-braking. A vertical axis wind turbine does not need a brake in case of turbulence. As the rotational speed increases, in fact, the blade which is geared against the wind, acts as a brake, limiting and stabilizing the rotation speed.
Country of Origin
Italy
Weight
32 kg
Dimensions
120 × 120 × 190 cm
Configuration
Plus, Stand Alone, Grid Connected
Voltage
AC Three-phase / Mono-phase 48V max (12/24/48V DC battery systems)
