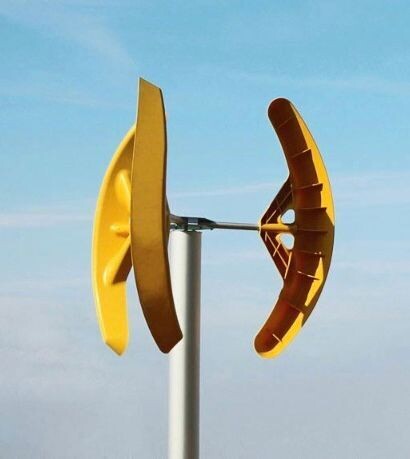

Our Vento Y wind generator stands out in its segment for reduced volume and an unprecedented price. Our “little one” is suitable for those who need small amounts of clean and free current in situations where it is often difficult to connect to the national electric network, as happens for example when camping, or in toolsheds or house boats.
Also perfect for those who want to approach wind power without great pretensions or to monitor the presence of local wind without having to invest in expensive anemometric equipment – and produce current at the same time!
We offer our mini-talent in 300W, 400W and 500W versions as well as in a 6-blade version that allows you to capture twice the wind in the same volume unit, doubling the power!
Like all our products, the Vento Y can be combined with the preferred inverter system (Stand Alone / Grid Connected).
It distinguishes itself from the other series because of the more dynamic line, accentuated by the bright yellow color of the blades.
Lightweight, elegant, and completely made of plastic polymeric composite material, these beautiful blades for vertical axis wind turbines are the result of years of testing and field tests.
Also available in 6-blade version that allows you to capture twice the wind in the same volume unit by doubling the power.
Self-braking:
due to its intrinsic aerodynamic nature, the vertex profile is self-braking. In this way a vertical axis wind turbine does not need to be braked in case of turbulence. As the rotational speed increases, in fact, the blade which is geared against the wind, acts as a brake, limiting and stabilizing the rotation speed.
Country of Origin
Italy
Weight
10 kg
Dimensions
70 × 70 × 120 cm
Configuration
Basic, Plus, Stand Alone, Grid Connected, Full
Voltage
AC Three-phase / Mono-phase 36V max (12/24V DC battery systems)
Peak Power
300W, 400W, 500W
Nominal Power
150W, 200W, 300W
Start-up Wind
300W: 0,9 m/sec (6blades); 2,6 m/sec (3blades)
400W:1,2 m/sec (6blades); 2,4 m/sec (3blades)
500W: 1,6 m/sec; 3,2 m/sec (3blades)
Noise Level
< 40dB
Colour
Yellow
Number of blades
3 blades (standard)/ 6 blades (optional +3)
Warranty
2 years
Features
Vertical Axis
Drive
Direct Drive
Certifications
CE, EN-610000-3-2:2014
Permanent Magnet Alternator 300W/400W/500W
Power
300W/400W/500W
Voltage
36V AC max (12/24V DC battery systems)
Motor Speed
60-240RPM
Motor Lifetime
20 years
Warranty
2 years
Torque
12 (300W), 14 (400W), 17 (500W)
Motor Material
High quality ferromagnetic material (NdFeB = Neodymium, Iron, Boron) Enclosed in aluminum clad steel housing Stainless steel motor shaft
Universal Wind/Solar Power Controller 30A - 12/24V
Voltage
12/24 V auto sensing
Rated Cable Charging Current
30A
Rated Load Current
30A
Overload Protection
Yes
Short Circuit Protection
Yes
Working Temperature
-35 °C ~55 °C
Control Method
Charging batteries with PWM (pulse width modulation)
